P Bass Wiring Diagram. P Bass Wiring Diagram Because these pickups connect to the middle lugs of the volume pots, you can change the volume of one pickup without affecting the other USA Dealer Locations > International Dealer Locations >

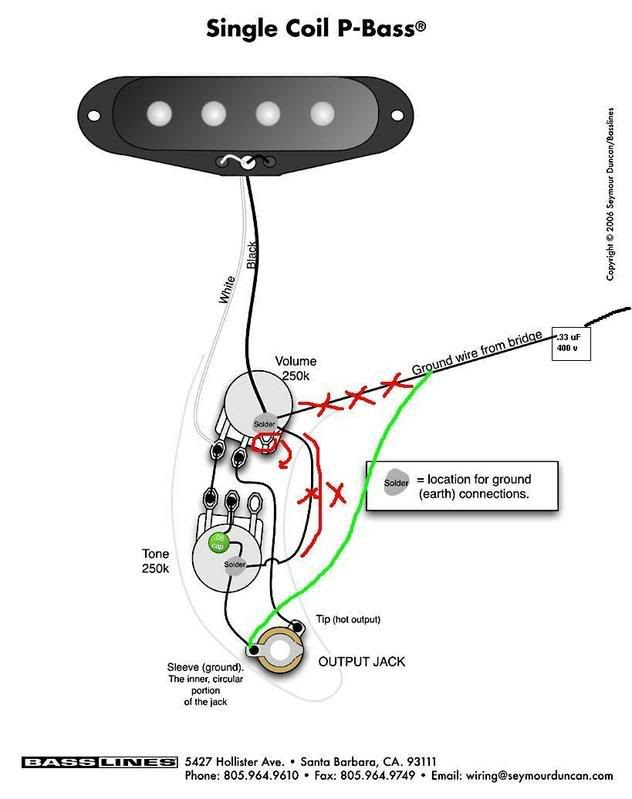

USA Dealer Locations > International Dealer Locations > Wiring diagram with one P-bass style split pickup, 1 volume and 1 tone

Fender Squire P Bass Wiring Diagram IOT Wiring Diagram

Notes on this P-Bass Wiring Diagram: More information regarding this wiring diagram: Download P VOL Output jack Ground to bridge P-J Bass Viewed from the back..050-.100µF cap Bright Switch (Tone Pot) Fralin Bright Switch Push-Pull Pot Mod, for Tone Pot Installation.

How To Wire a Precision Bass — Six String Supplies. Wiring Diagrams; Installation & Dimensions; Orders & Info P VOL Output jack Ground to bridge P-J Bass Viewed from the back..050-.100µF cap

Pbass wiring r/Luthier. Click diagram image to open/view full size version Download this wiring diagram and save it to your computer
